Fig. 1
Download original image

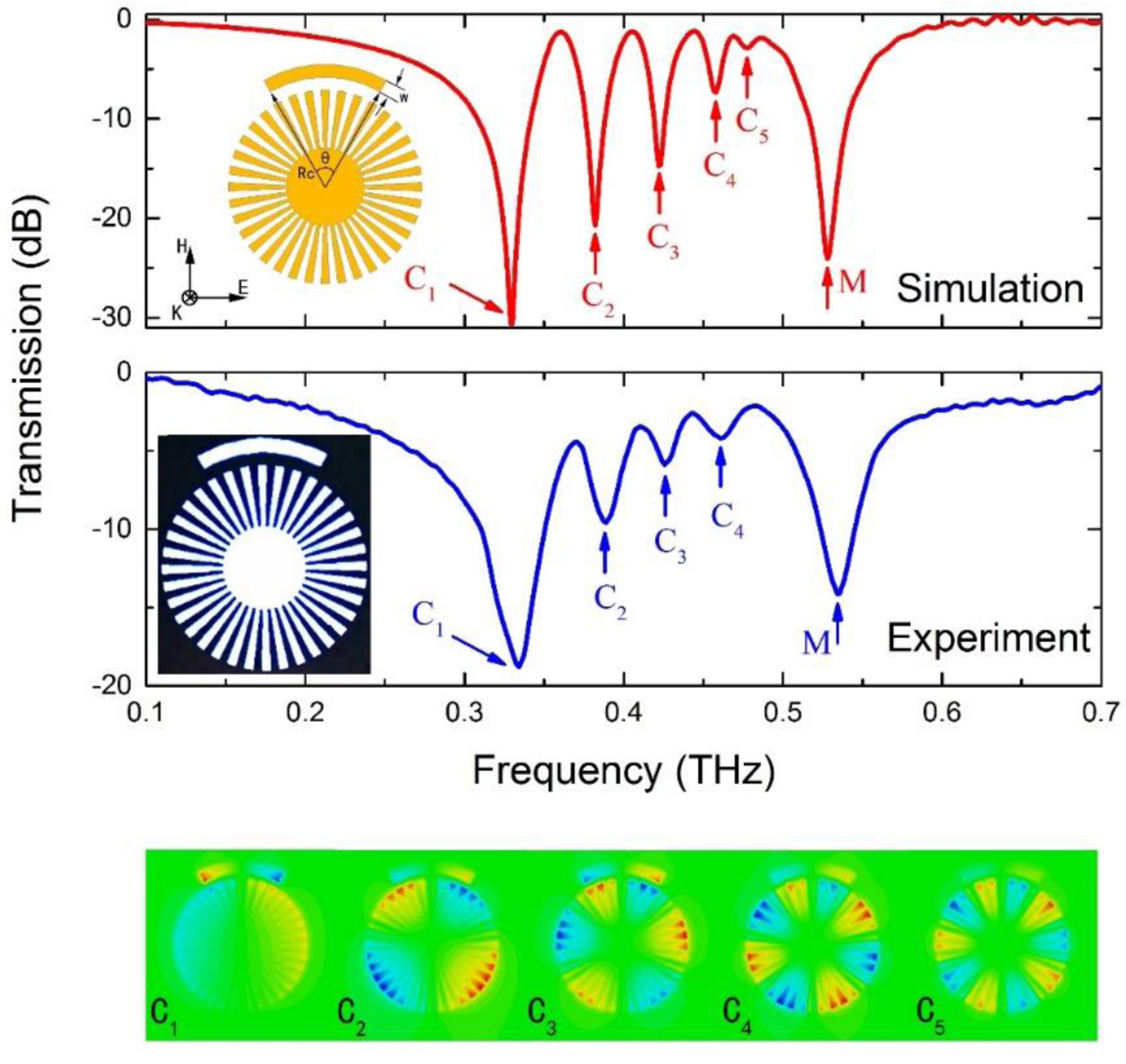

Theoretical and experimental transmission spectra of cap coupled corrugated texturing closed disk, bottom: electric field of multipolar resonances shown as dipole (C1), quadrupole (C2), hexapole (C3), octopole (C4), decapole (C5) mode. The resonance (M) comes from bright LSP mode supported by single CSR structure.
