Fig. 10
Download original image

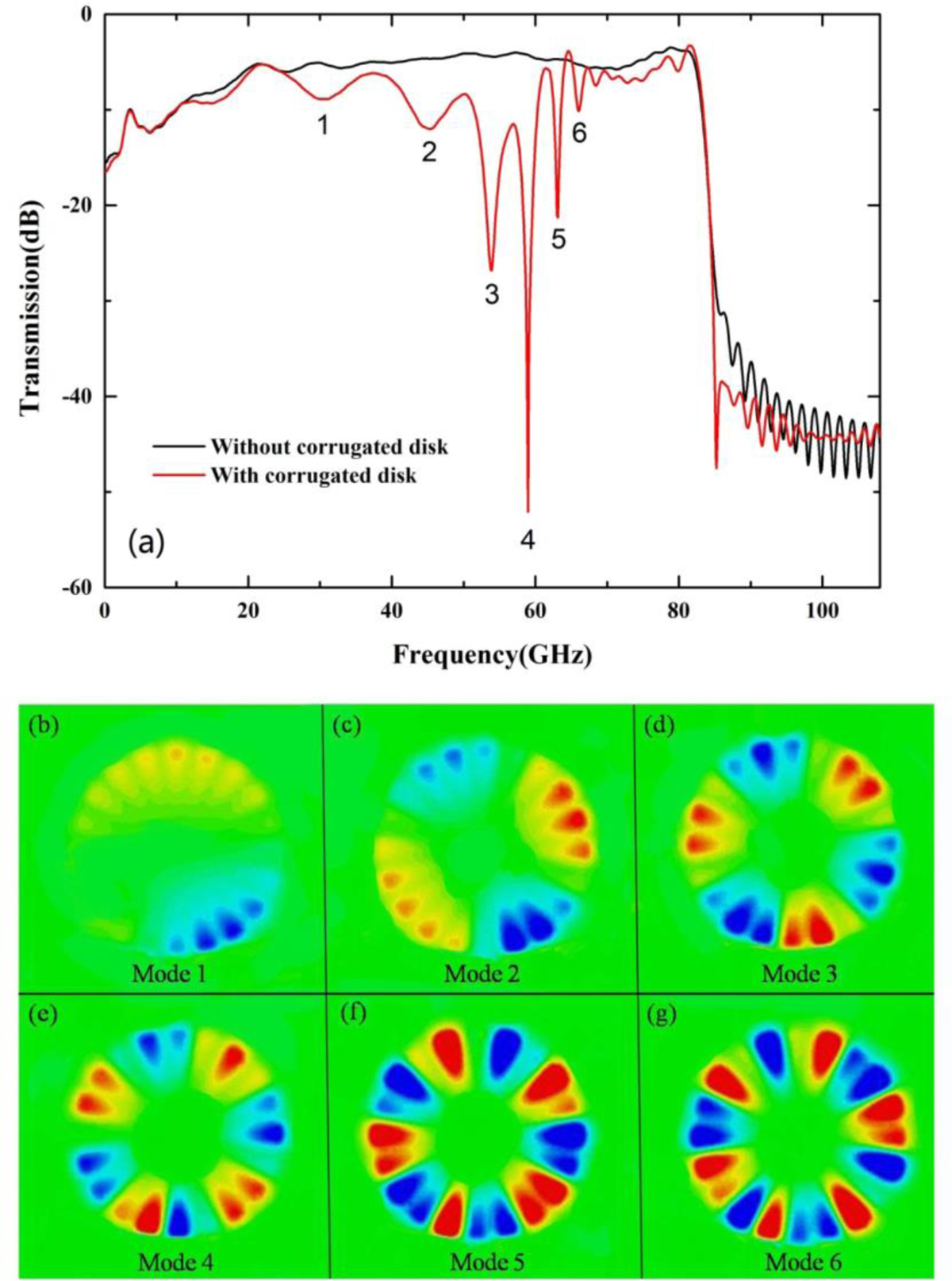

(a) The transmission coefficients S21 of the biosensor system, in which the black line stands for the plasmonic waveguide without corrugated disk, and the red line stands for the spoof SPP waveguide with corrugated disk, (b)-(g) the electric field (Ez) on an x-y plane which is 0.1mm above the metal film.
