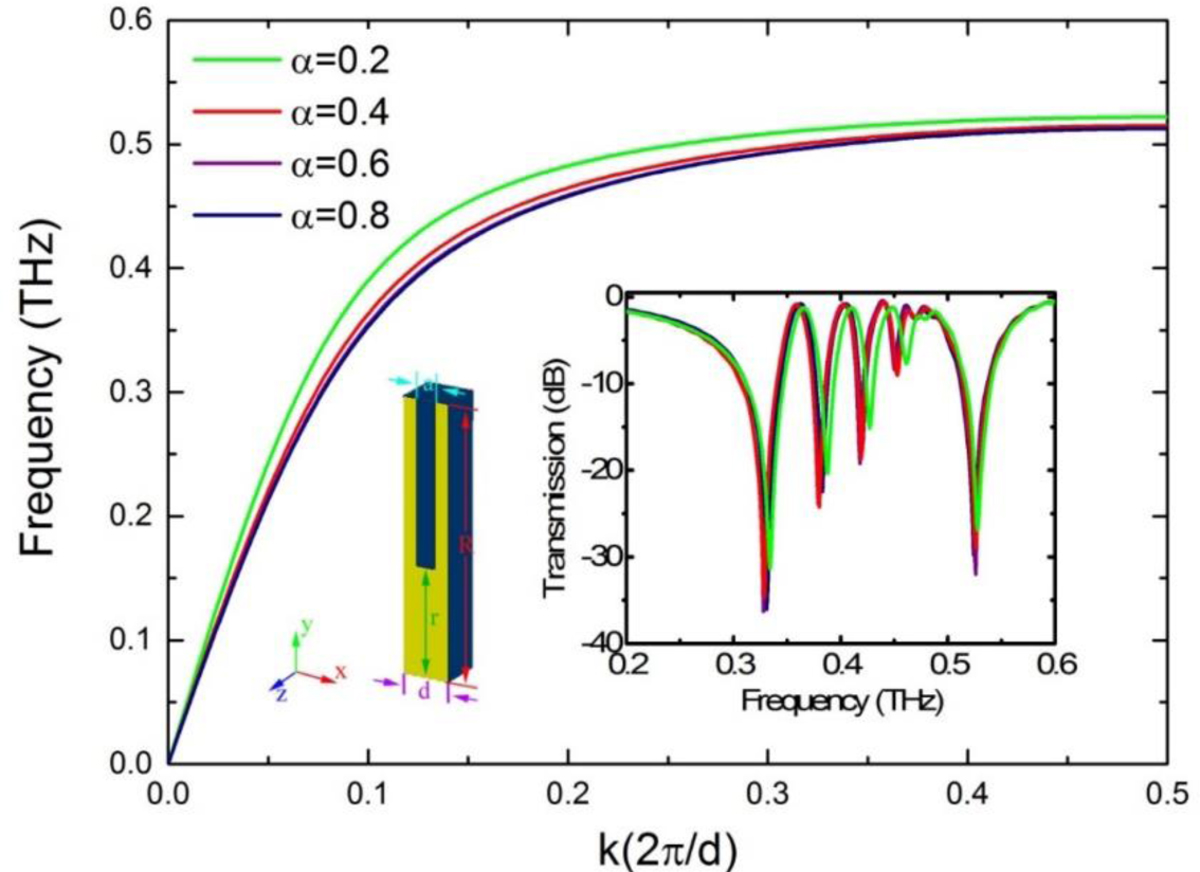

Dispersion curves for the corrugated metallic disk with different α (a/d). (inset) Transmission spectra for corrugated metallic disk coupled to a C shaped dipole resonator with different α. The other parameters are R = 150 μm, N = 36, d = 2πR/N, and r=60 μm.
