Fig. 2
Download original image

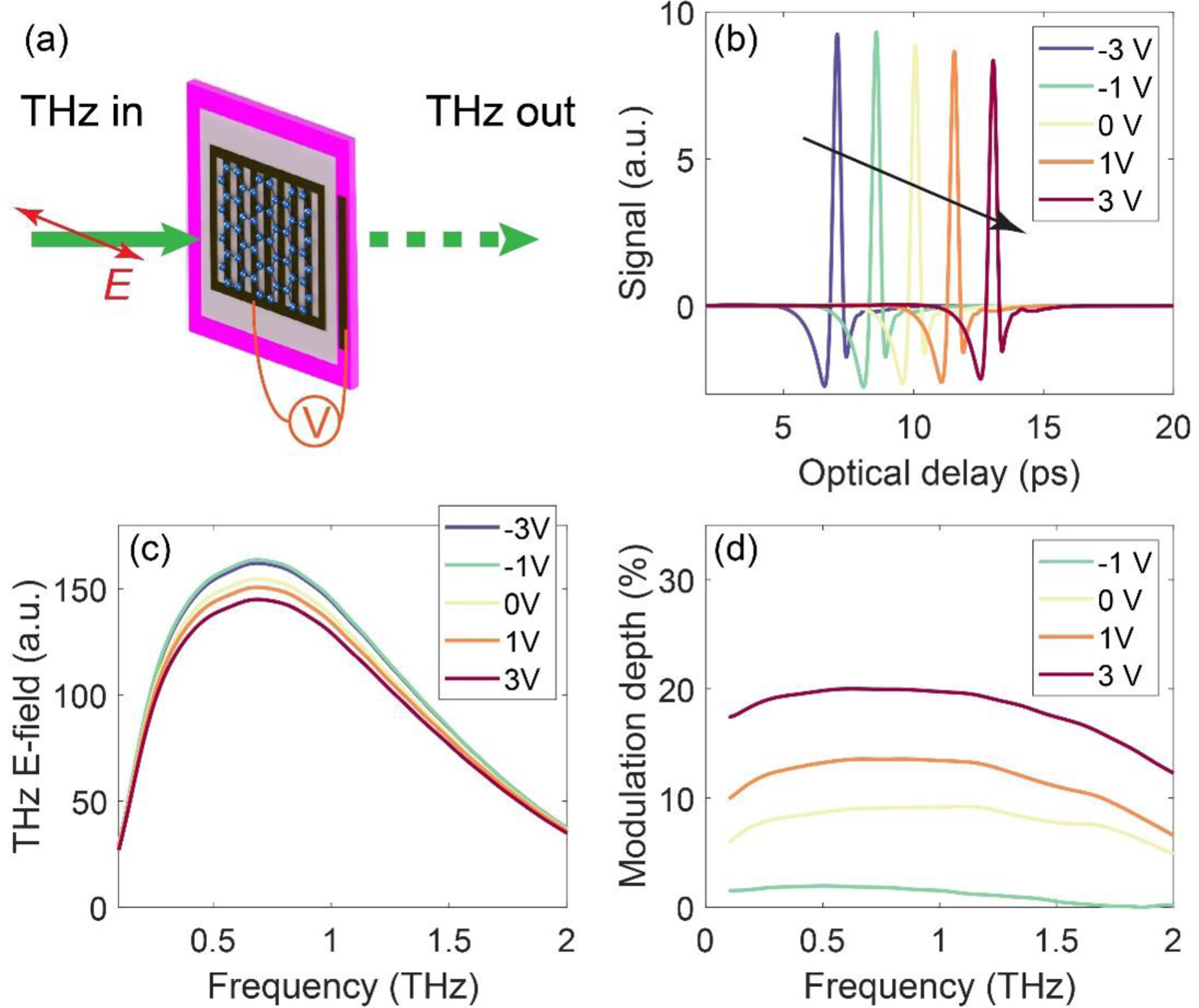

The experimental configuration and results in transmission geometry. (a) The 20-4 device measured in transmission geometry. (b) The transmitted time-domain THz signal under different gate voltages. The time-domain signal is horizontally shifted in optical delay axes for clarity. (c) The corresponding frequency-domain THz signal and the calculated modulation depth (d).
