Fig. 3
Download original image

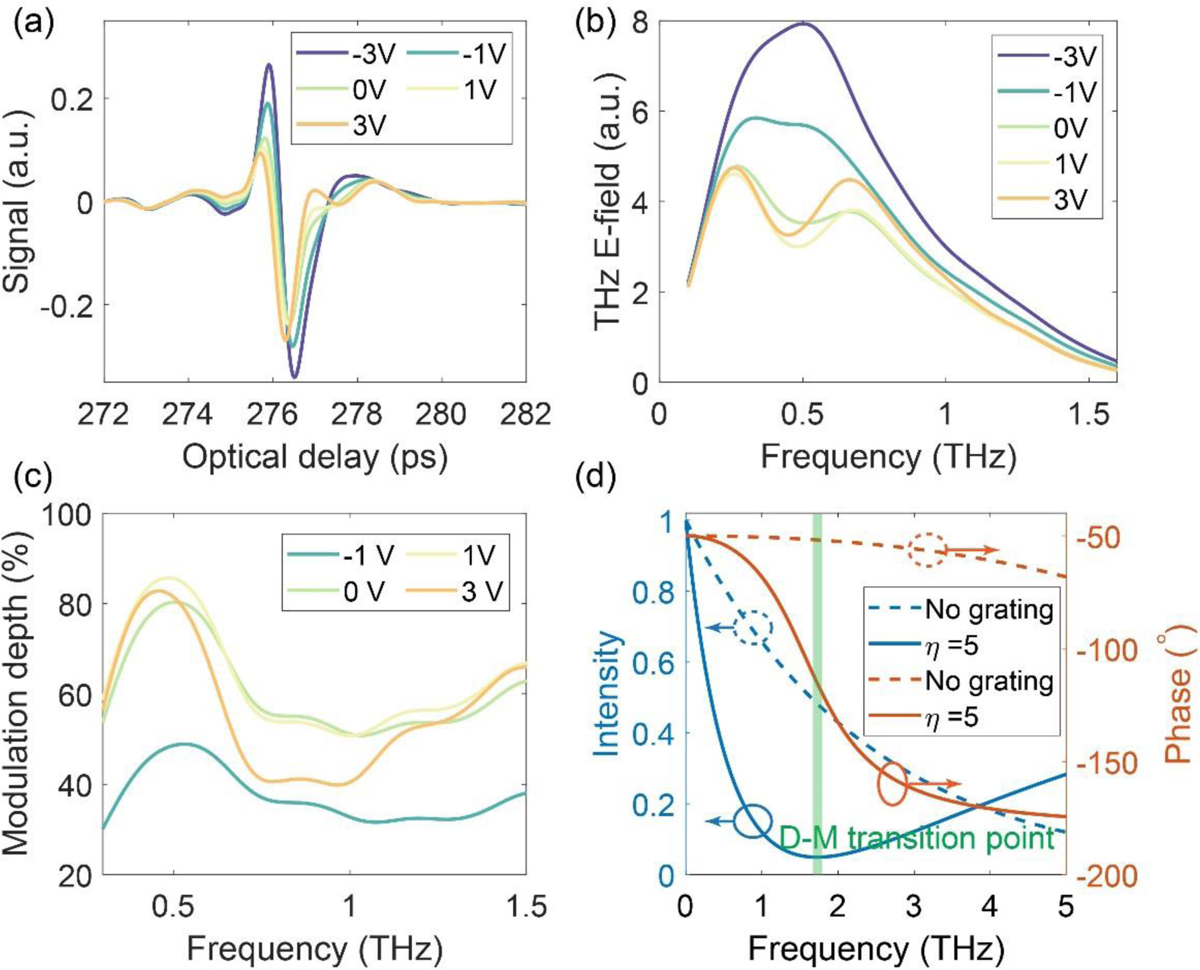

The experimental results in the TIR geometry. The reflected THz waveforms in time-domain (a) and frequency-domain (b) under different gate voltages. (c) The calculated corresponding modulation depth. (d) The theoretical results of intensity and phase in reflected THz signal with/out metal wire grating.
