Fig. 7


Download original image

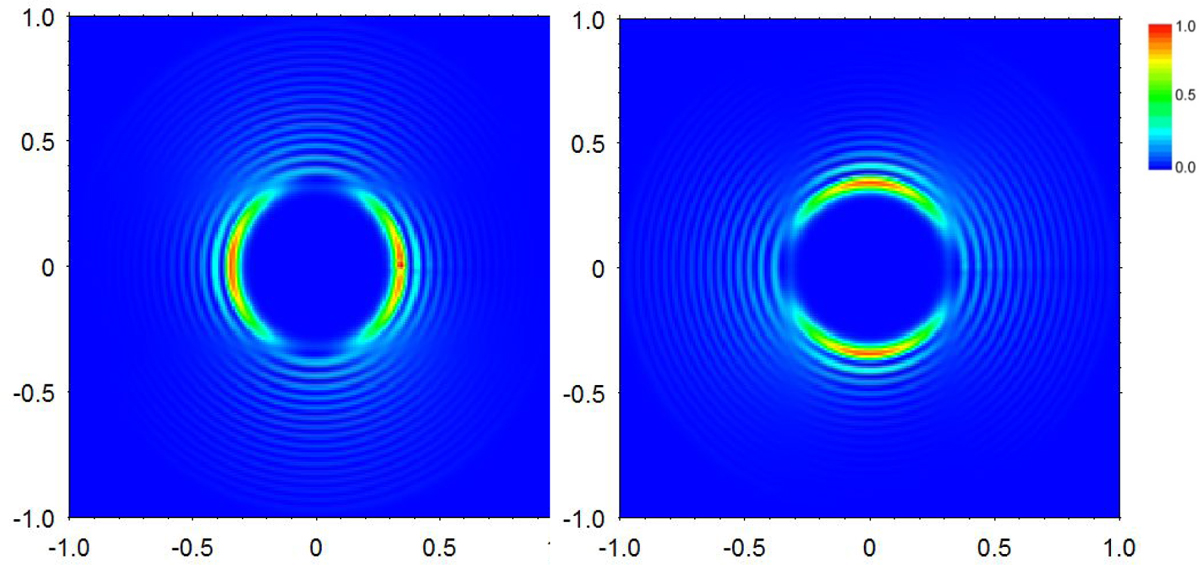

Calculated near-field pattern of the co-rotating TE31,17-mode (l = 30) at the up-taper output (140 mm diameter). The caustic radius is Rc = 22.9 mm. Horizontal polarization (left), vertical polarization (right).
